RM.04

RM.04

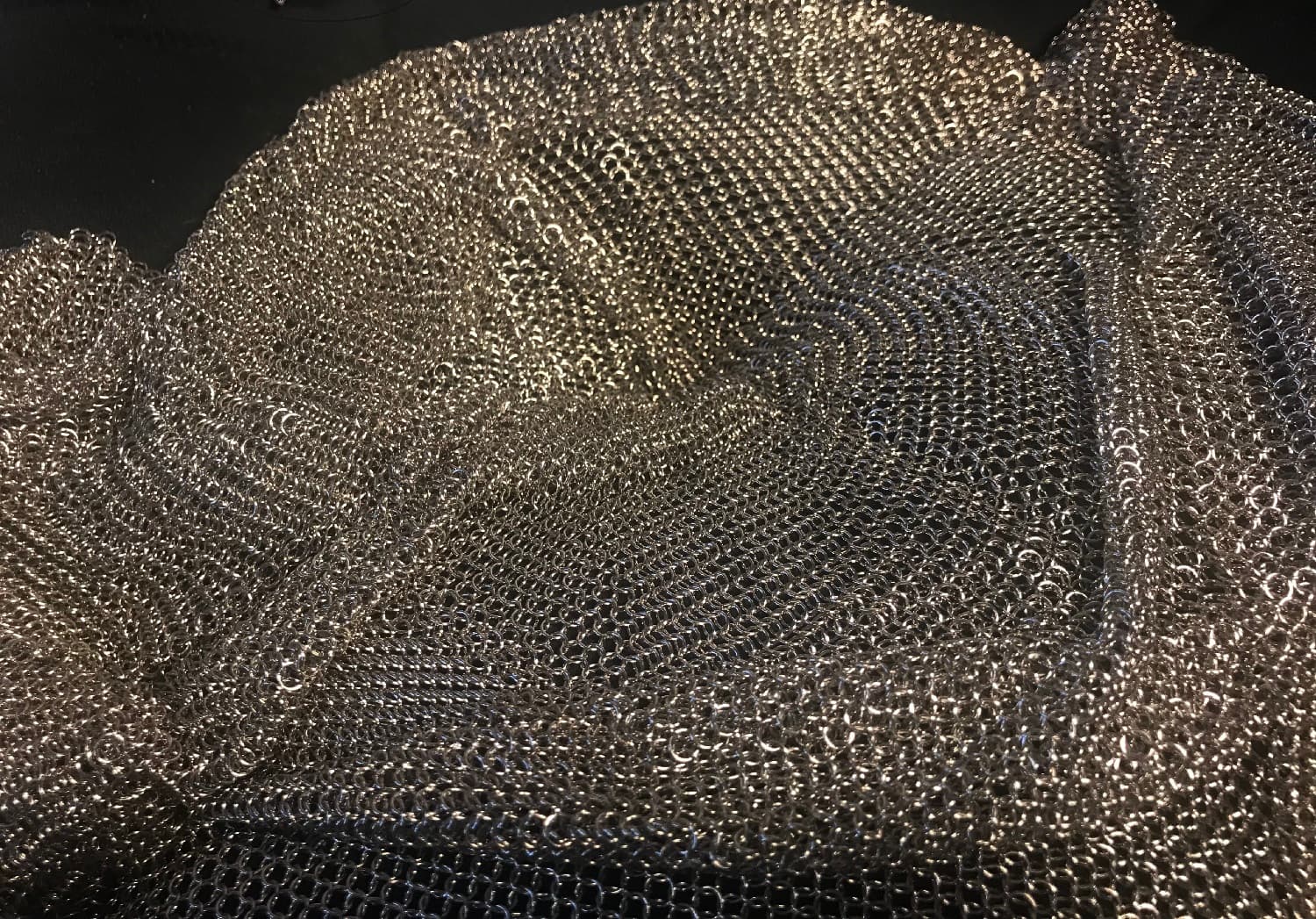

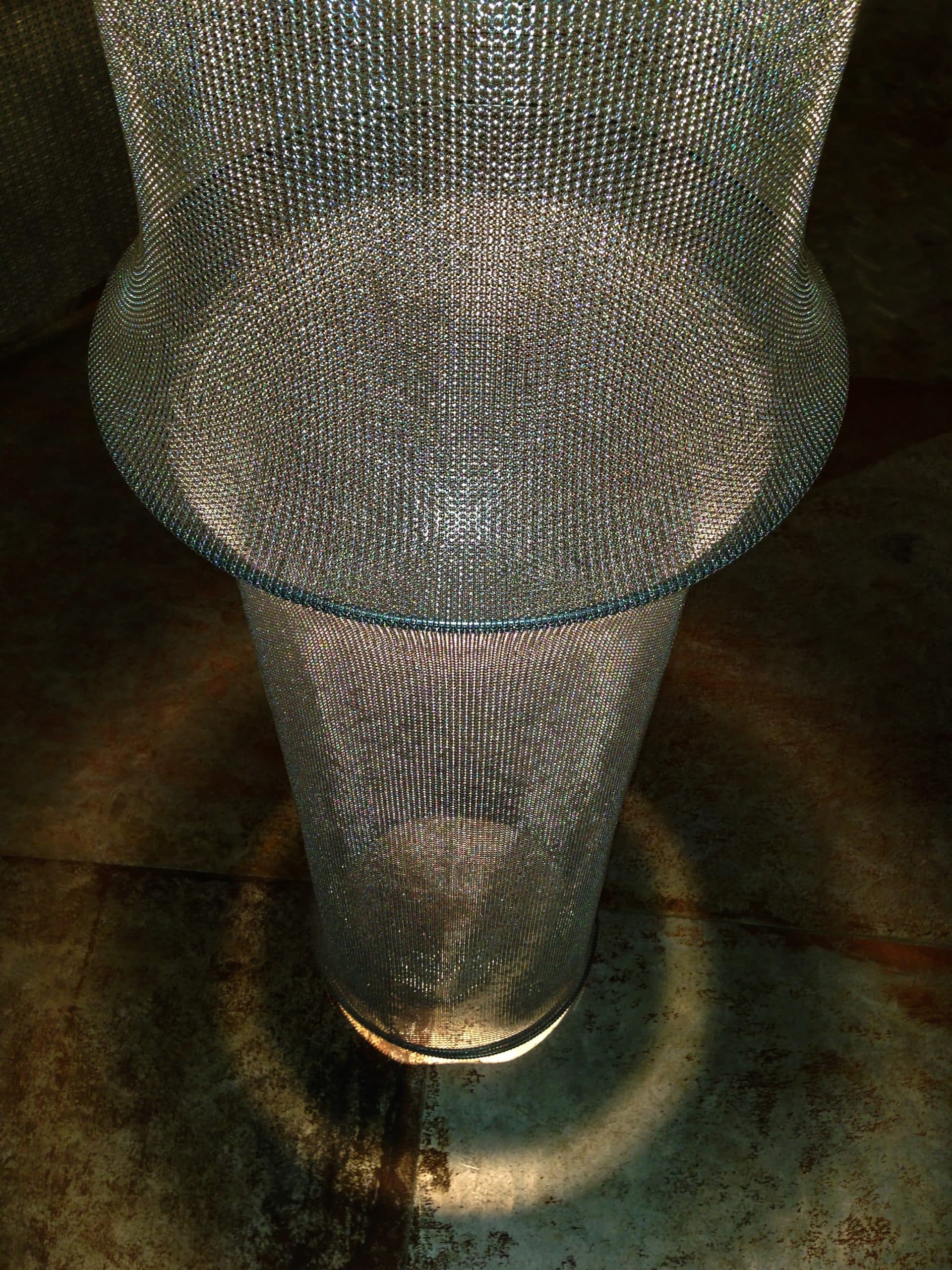

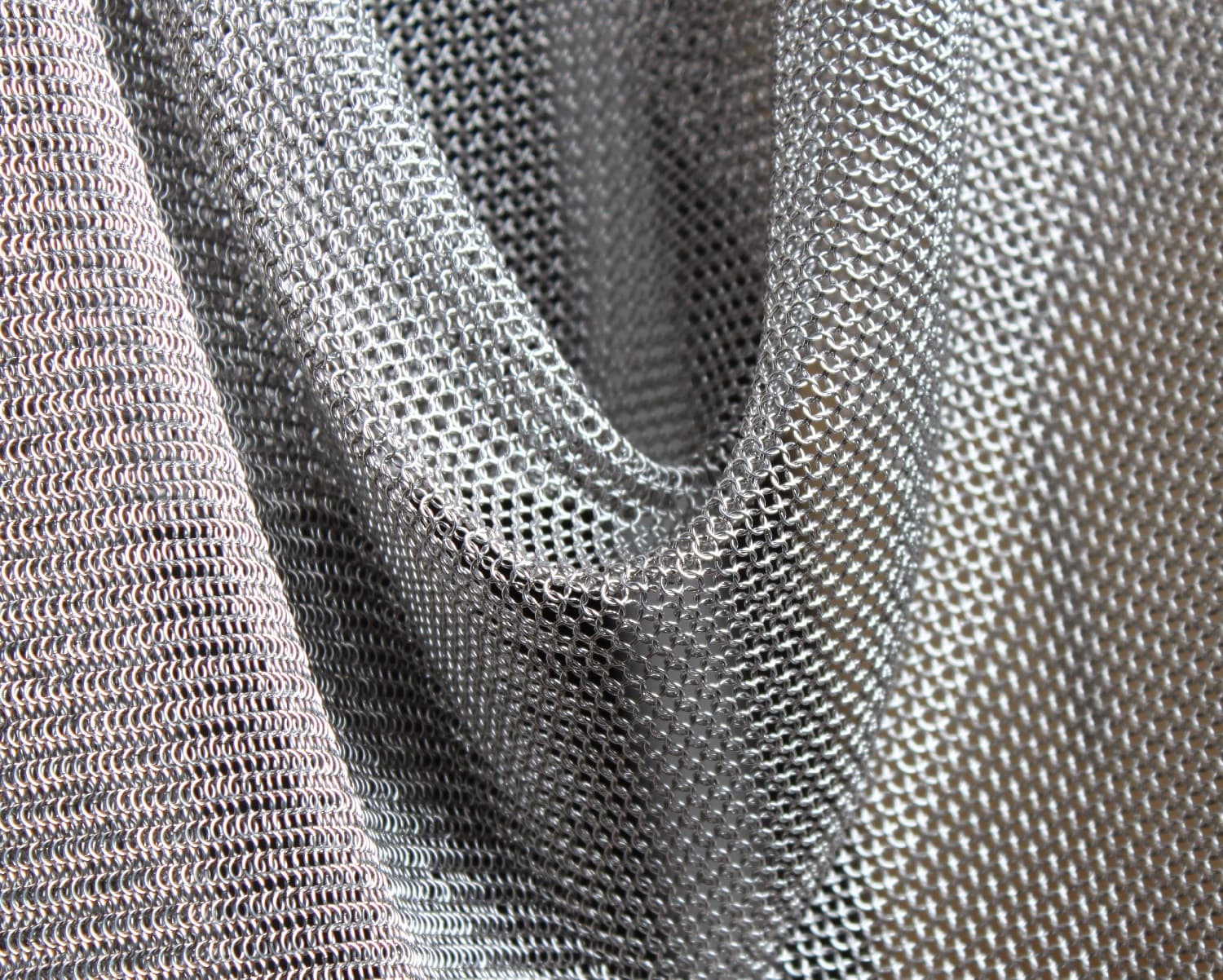

Metal mesh RM.04 (formerly SL) is a mesh composed of fully welded rings. Each ring is connected to four rings. The specific welding technique makes it very strong and resistant to deformation. The small size of the rings makes it soft to the touch and very flexible. The panels are produced in the standard size 500 x 500 mm and can be easily joined together to form larger installations. Special dimensions are offered on request. The metal curtains are preferably ordered about 2-3 cm longer as it is often finished resting on the floor. The construction of the metal mesh means that it can fall somewhat unevenly in height.

Material:
Plated steel, Stainless steel
Wire:
Ø 0,48mm
Inner diameter:
Ø 3mm
Outer diameter:
Ø 4,06mm
Open area:
57%
Thickness:
2,16mm
Weight:
2,8 kg/m2
